Xunshi could now offer FeCO17 Vacoflux 17 Soft magneitc alloy with high performance.
VACOFLUX 17 exhibits a very high saturation of 2.22 T and is used in the area of high pressure diesel injection. The alloy can be cold formed.
Xunshi VACOFLUX 27 magnetic properties
| B400A/m (T) | B800A/m (T) | B1600A/m (T) | B2400A/m (T) | B4000A/m (T) | B8000A/m (T) | B16000A/m (T) | Hc(A/m) |
| 1.40 | 1.60 | 1.72 | 1.79 | 1.88 | 2.02 | 2.21 | 152 |
Typical composition
| Element | % (mass) |
| Cobalt | 16.5 – 17.5 |
| Chromium | 1.80 – 2.40 |
| Molybdenum | 0.65 – 0.95 |
| Vanadium | 0.40 max. |
| Sulphur | 0.030 max. |
| Carbon | 0.015 max. |
| Other (each) | 0.30 max. |
| Iron | Balanced |
Character
- Saturation magnetic induction intensity: 2.22T
- Resistivity: ρe= 0.41 µΩm
- Cobalt content is as low as 17%, effectively reducing costs
Forms of supply
- Strip material, thickness 0.1 – 1 mm, width 30 – 220 mm

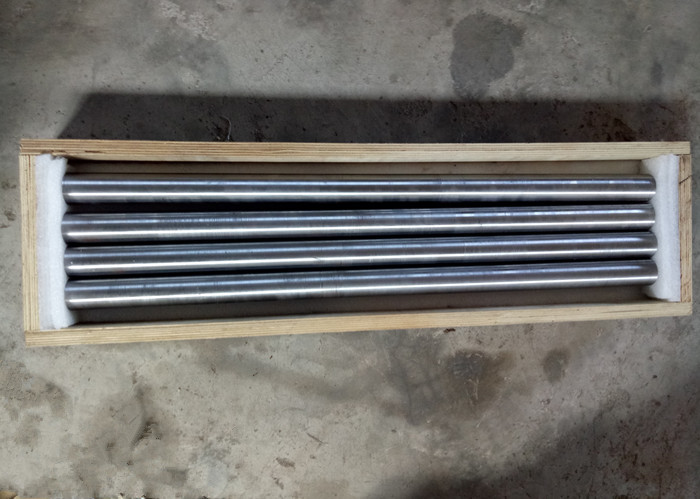

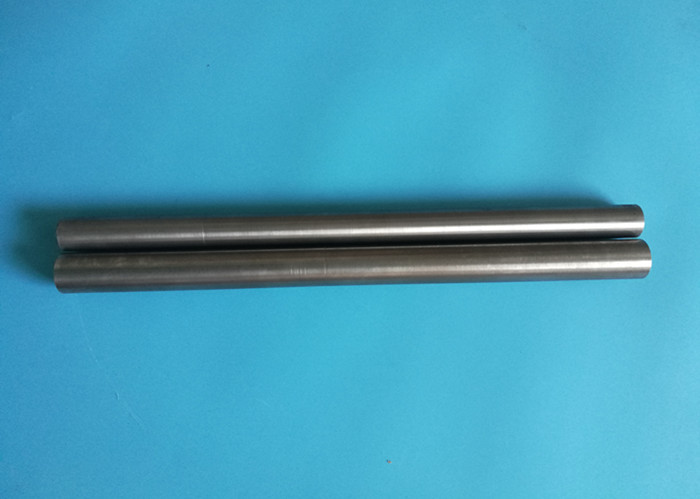

- Solid rods, diameters 10 – 200 mm
- Wire material, diameters ≤ 13.5 mm
